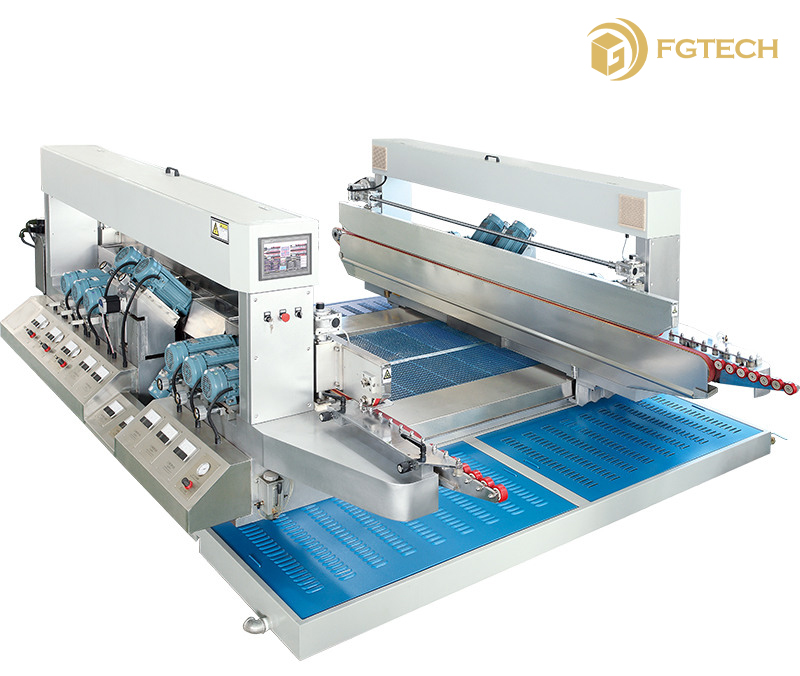

Straight Line Glass Four Sides Rough Grinding Processing Machine for Curtain Wall Glass
Product ID : DED4300
Product Attributes :
Straight Line Glass Four Sides Rough Grinding Processing Machine for Curtain Wall Glass
Product Description
Basic Info.
Model NO.
FEG-DED
Grinding Head Number
18
Condition
New
Glass Processing Thickness
3-19mm
Open and Close Speed
0-15m/Min
Glass Processing Speed
0-12m/Min
Delivery Time
60-90 Days
Trademark
AGLASSTEC
Transport Package
Iron Frame & Shrink Film
Specification
4300*3200*2000mm
Origin
China
HS Code
8464201
Straight Line Glass Four Sides Rough Grinding Processing Machine for Curtain Wall Glass
1. DIFFERENT SIZE FOR OPTION
| MODEL | FGE-DED6025 FGE-DED6030 FGE-DED6033 |
FGE-DED9025 FGE-DED9030 FGE-DED9033 |
FGE-DED12025 FGE-DED12030 FGE-DED12033 |
FGE-DED20025 FGE-DED20030 FGE-DED20033 |
| Maximum glass processing size | 6000*2500mm 6000*3000mm 6000*3300mm |
9000*2500mm 9000*3000mm 9000*3300mm |
12000*2500mm 12000*3000mm 12000*3300mm |
20000*2500mm 20000*3000mm 20000*3300mm |
| Minimum glass processing size | 350*800mm | 350*800mm | 350*800mm | 350*800mm |
2.TECHNICAL INFORMATION:
| Glass processing thickness | 3-32mm |
| Glass Processing speed | 0-12m/min |
| Open and close speed | 0-15m/min |
| Diagonal tolerance of processing glass (mm) | (1m*1m) ±0.5mm/m |
| Parallel tolerance of processing glass(mm) | (1m*1m) ±0.1mm/m |
| Chamfer tolerance(mm) | <=0.3mm/m |
| Chamfer width(mm) | 1-3mm |
| Working table height | 870mm |
3.GRINDING WHEEL CONFIGURATION:
4.OPTION FUNCTION
OPTION A. Automatic compensation for diamond wheel
OPTION B. Automatic compensation and position locking for polishing wheel
OPTION C. Low-E coating removed device
OPTION D. Safety corner cutting device
5. PACKING & LOADING PICTURES
Warmly welcome to visit, if there is any model you are interested, please feel free to contact.
Looking forward to cooperate with you and let's mutual benefit and win-win result.
