150g Glass Pneumatic Manipulator Crane Lifting Machine for Sale with Factory Price
Product ID : FGV-VL-04-02
Product Attributes :

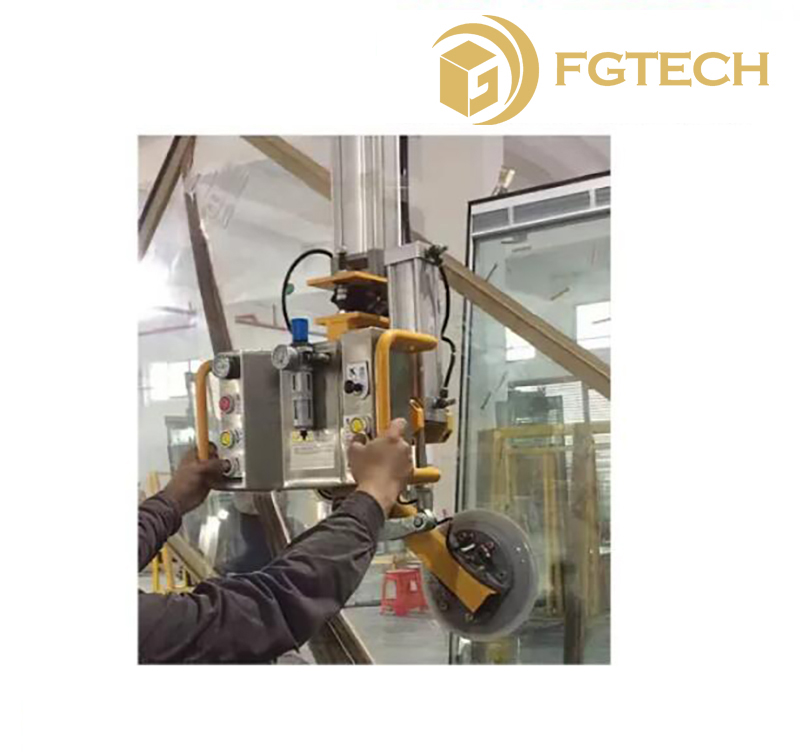

The lifter is designed for semi-automatic operation. The entire system consists of slide-type pillar jib crane, cylinder hoist device, vacuum gripping device, and pneumatic rotation device, to achieve gripping, lifting, moving and placing materials to specific location by a serial of process setting, driven by compressed air.
Product Description
Basic Info.
Model NO.
FGV-VL-04-02
Pneumatic Rotation
90degree
Hoist Cylinder
80mm
Slewing Range
180~270 Degree
Cups
2pads, 300mm Diameter
Min Glass Size
800*500mm
Application
Welding, Load, Forging
Drive Mode
Pneumatic
Trademark
AGLASSTEC
Transport Package
Iron Frame & Shrink Film
Specification
700*500*400mm
Origin
China
1. PRODUCT DESCRIPTION
The lifter is designed for semi-automatic operation. The entire system consists of slide-type pillar jib
crane, cylinder hoist device, vacuum gripping device, and pneumatic rotation device, to achieve
gripping, lifting, moving and placing materials to specific location by a serial of process setting, driven
by compressed air.
2. PRODUCT CHARATERISTICS
| Code | FGV-VL-04-02 |
| Size (mm) | 700mm (L) * 500mm (W) * 400mm (H) |
| Weight (kg) | 40kg (not including hoist cylinder) |
| Driven System | Pneumatic Components Integration |
| Suction Cup | Round sucker; NBR material; oil & abrasion resistance; suction 250kgf; location adjustable; with buffer spring for height compensation |
| No. & Size of Cups | 2 pads; 300mm diameter |
| Structure | L type; steel material; ergonomic design |
| Min. Glass Size | 800mm (L) x 500mm (W) |
| Safety Loading Weight | 150kg |
| Lifting Material | Glass, marble, plastic boards, metal sheets, coated boards and other plates. |
| Usage | Gripping, lifting and handling in the glass production and processing line, and glass packaging. |
| Installation Request | Hanged on the pillar jib crane or frame crane or bridge crane; compressor power supply |
| Packaging | Plywood Case |
| Delivery Time | Within 20 days after receiving the payments |
| Payment terms | L/C, T/T |
| MOQ | 1 set |
| Supply ability | 500 sets per month |
| Certificate | CE, SGS |
| Others | OEM / ODM accepted |
3. PRODUCT TECHNIQUE
| Safety Loading Weight | 150 kg |
| Factor of Safety | 2.5 |
| Standard Working Power | 0.6~0.8 mpa |
| Noise Level | < 60 Db |
| Vacuum Holding time | More than 30 minutes after power loss |
| Gripping | Suction cups in vacuum state |
| Hoist Cylinder | 100mm diameter; 1200mm distance; universal connection; three position five way valve make cylinder stay at any height with no drop, even if power loss |
| Rotation | Turn up to 90 degree driven by cylinder |
| Safety Protection | Vacuum non-return system and vacuum compensation system |
| Vacuum Compensation | when vacuum reaches to the specified pressure, it automatically closes the compressed air supply, to achieve energy saving; when vacuum pressure is insufficient, it automatically restore compressed air supply, to achieve vacuum compensation. |
| Control Method | Color-different buttons control on the same panel |
4. SAFETY INSTRUCTION
| Factor of safety | According to the European CE safety requirements for lifting equipment, and safety regulations on the German accident prevention regulations UVV 18 and VBG 9a, the best safety factor for vacuum lifter is 2.5. For example, each sucker 250mm dia., with suction reaching to 250kgf, divided by the safety factor 2.5, can load 100kg. If the lifter uses 4 suction cups, the total suction is 100*4=400kg, greater than approved glass 250kg. When the glass is handled and transported vertically, it should be multiplied by the coefficient of friction 0.8 (between rubber and glass), 400kg*0.8=320kg, still greater than the approved glass 250kg. |
| Safety Protection Instruction | Once glass sucked, the system is under airtight state. The only entrance for air is backflow from vacuum generator to destroy system's vacuum state. Therefore, the lifter is equipped with the safety non-return valve, for which air can only be extracted from inner system, with no return, and through which it can ensure sufficient vacuum to keep absorption time when power loss. |
| Vacuum Compensation Protection | Not worried about air leakage and insufficient vacuum, because the lifter is equipped with pressure sensor and vacuum compensation system. When vacuum is not enough, the system automatically senses and resumes operation to keep sufficient vacuum. |
