Structure Features

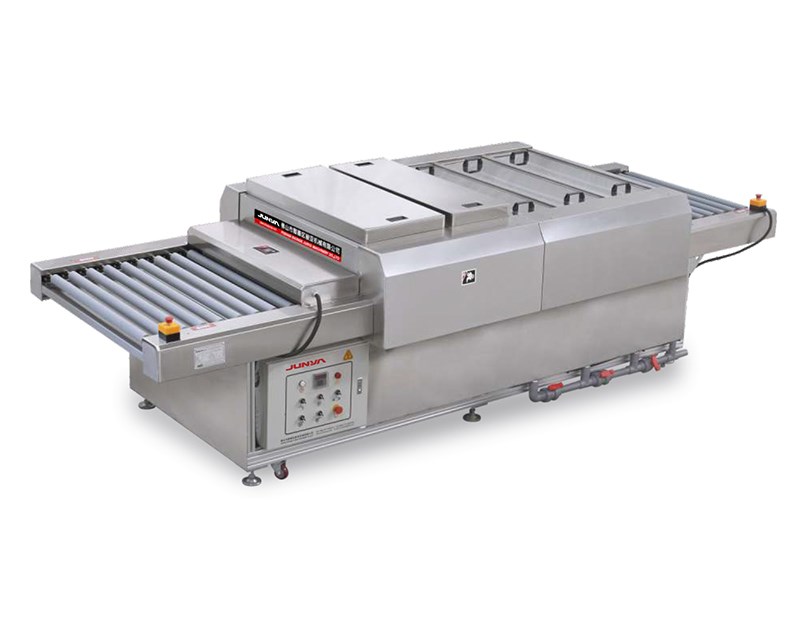

1.   Horizontal glass washing is for washing and drying flat glass, which is applied for electronic glass and glass with high requirements.

2.   The machine mainly consists of loading section, washing section, drying section and unloading section.

3.   Main drive is gear drive and frequency speed adjustment.

4.   All protective covers, metal panels are made of stainless-steel 304.

5.   Water tanks are welded with SS material, and have filtering mesh.

6.   Transmitting rubber rollers of the machine use top-grade nitrile rubber (Full cover of vulcanized rubber).

7.   The machine has 3 stage washing with 3 water tanks and high-pressure water pump.

8.   The machine has four pairs of brushes,two pair of air knife and three water tanks .

9.   Working Environment:  dust-free workshops or ordinary workshops

10. Machine noise level: less than 86DB; Measuring Method: test at 1m distance from loading and unloading section.

11. Safety certificate standard: 3C standard.

Technical Parameters
