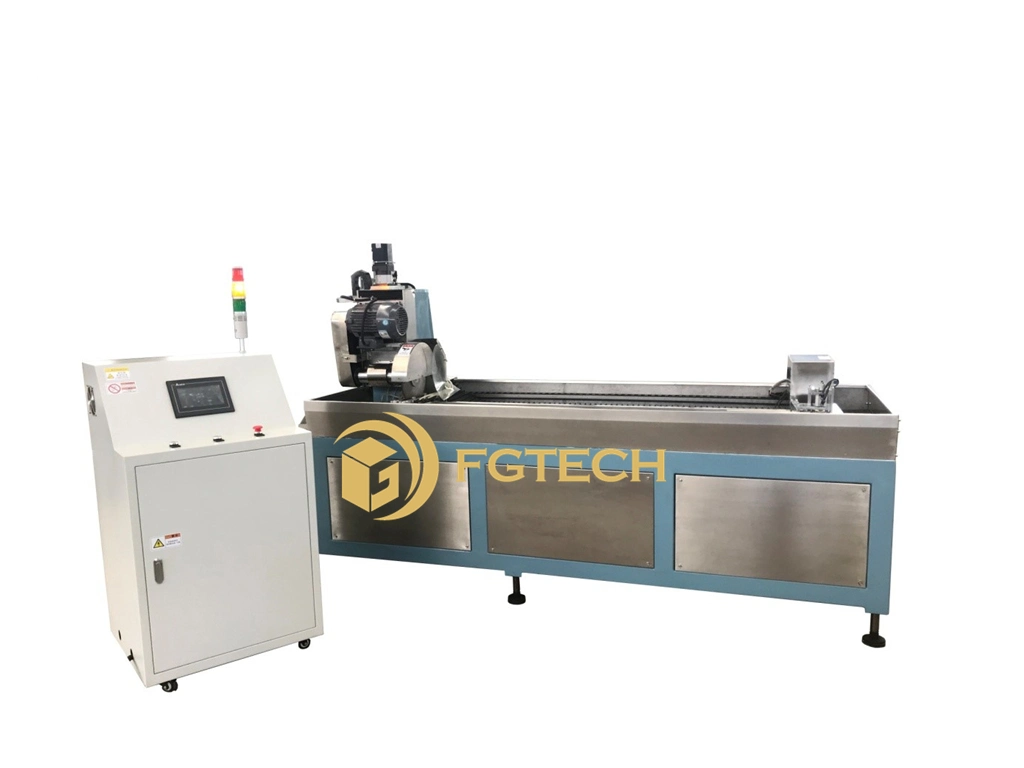

Full Automatic Glass Tube Cutting Machine

Applicable range:
It is suitable for linear cutting of capillary glass tubes, glass rods, quartz tubes, lime tubes, borosilicate glass tubes and other brittle hard non-metallic materials, the speed of the saw blade is adjustable, with smooth kerf, small chipping, simple operation. Automatic feeding, the final product length can be directly set.

Standard configuration (Brand can be customized)
   1,Frame: National standard square tube welding
   2,Guide: Shangyin, Taiwan(Made in China)
   3,TBI  Ball screw: TBI
   4,PLC: Delta, Taiwan (Made in China)
   5,Touchscreen: Delta, Taiwan (Made in China)
   6,Frequency: Delta, Taiwan (Made in China)
   7,Low voltage electrical components: Zhengtai
   8,Main pneumatic components: Airtac
   9,Conveyor motor: Delta servo motor / 750W
   10,The lifting motor of saw blade: Delta servo motor
   11,3KW The rotation motor of saw blade: Geared motor, Made in China
   12,Water pump: 380W (The water pump is installed as a suspended type, separated from the bottom of the water tank to avoid blockage by glass powder)
   13,The cover of water tank: SS material (The water tank structure is stepped, which is easy to clean the glass powder.)
   14,Saw blade: φ300mm resin material, thickness 1.6mm (The supplier can provide the specification of saw blade according to experience.)

Machine parameters (can provide specific requirements, non-standard customization)
   1,The max. Length of glass tube: 1800mm
   2,The effective arrangement width: ≤230mm
   3,The length after cutting: 3-50mm (Can be customized) (The length of scraps should be more than 60mm length.)
   4,The RPM of cutting disc: 1500-2100 r/min.
5,The diameter of glass tube: φ2-10mm
   6,The processing cycle time: 20-35s/action
   7,The length accuracy: ±0.1mm (For higher accuracy can be customized, price negotiable)
   8,Machine overall size: 3100*1000*1800mm
   9,Frequency/Voltage: 380V/50Hz (Voltage can be customized for export machine)
   10,Install power: 4KW

Equipment schematic diagram (for reference only, subject to the actual object)
