Automatic Glass Straight Line Polishing Machine

Description of the Equipment.

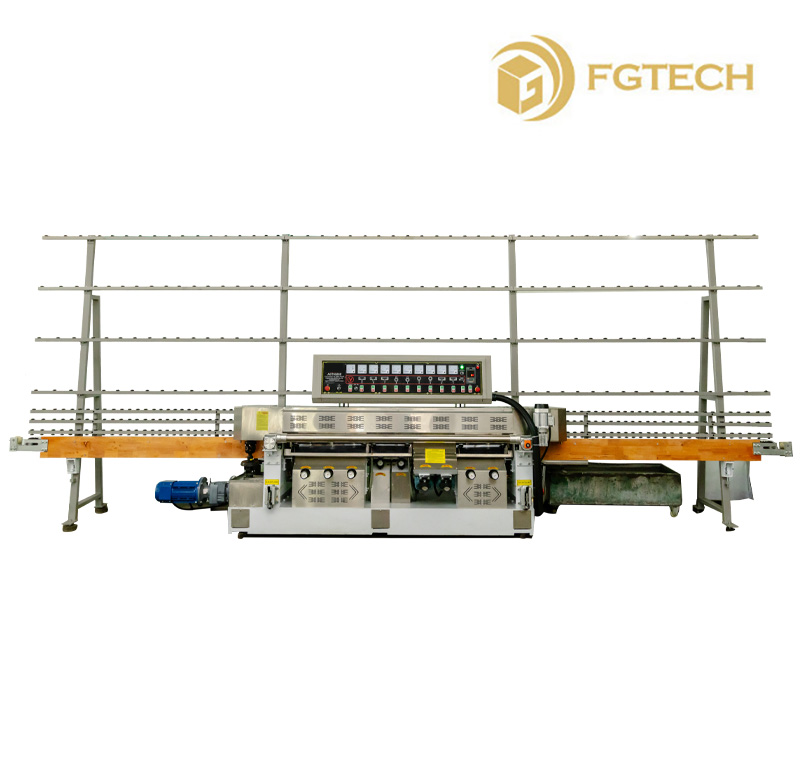

1. Automatic glass straight line polishing machine: FGE-HE292

Overall description: This machine is strongly recommended to process very big glass sheet because of this strong structure of ball bearing system and high precision ABB motor.  PLC control and touch screen operate surface is very easy to operate.  The main feature of this machine include: precise glass removal, good water proof, high working speed (Max.10 meter/m for 10mm glass) and very stable working ability.

Technical Specification:

Description:


1. Control system:

1. This machine use PLC control and touch panel operating system.  The machine can run in automatic mode and manual mode.

1. Conveyor:

Conveyor adopt chainless rolling transmitting system, which consists of three bearings rolling along high precision tempered steel guides, the movement of glass is very stable.

 The bearings for front and back conveyor is lubricated by the automatic oil pump, the well designed oil route enable top and bottom bearings to get oil evenly.

Back conveyor has cleaning brush, which ,maintain a clean surface and guarantee working result.



1. The machine has a glass thickness protection mechanism.  When wrong thickness glass is put in the machine.  The machine will stop automatically.  This protects the bearings from crushing.
2. Loading/off loading conveyor use timing belt.  It can adjust height to set different glass removal.

1. Glass support frame use Aluminum extrusion bar, with support roller.
2. The conveyor cover is made in stainless steel.

1. The front conveyor movement is motorized.  It can be adjusted through electrical button on working panel or adjustable automatically.  The thickness is displayed on screen.  There is also a mechanical readout to show glass thickness.

1. Working speed adjustment:

Working speed is adjustable through frequency inverter.


1. Spindles are driven by high quality ABB motors.

1. Water system

Water is circulated in the machine and stainless steel water tank.  A stainless steel drainage pipe is installed on back of machine to drain water from wheels tank.  Clean water is pumped to machine through a square water tube.  Installation of water circulation system is very easy.

Configuration of grinding wheels:


Spare parts:
