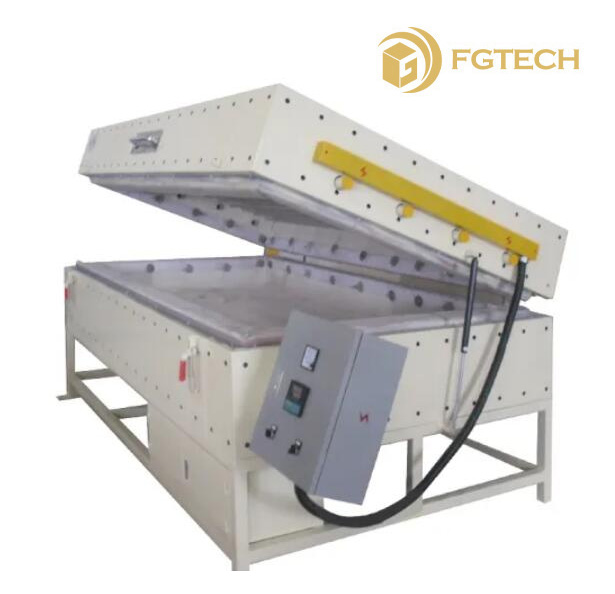

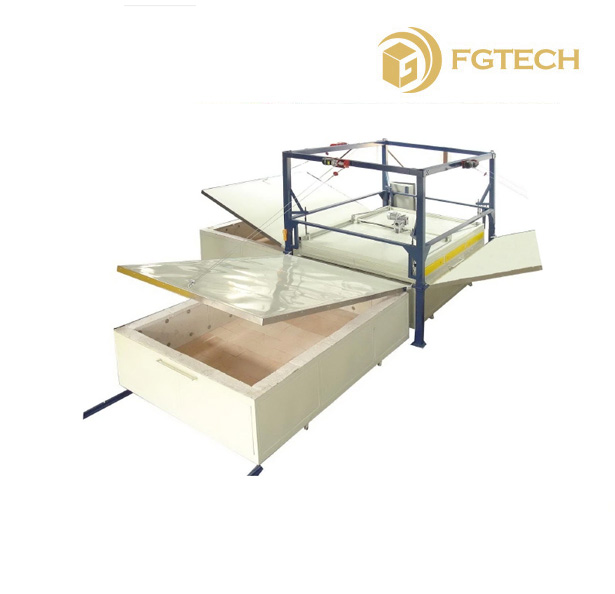

FGT-HF-BN-T2 3300*1700mm Glass Fusing & Bending  Furnace for frame glass
This equipment can produce circle or single furnace fused frame glass, screen, glass tableware etc. It can also use in decorating glass processing .Operating by PLC, heating up automatically in whole processing. the furnace lid rises up and down by electricity. Low electricity consumption, heating evenly ,high efficiency.

FGT-HF-BN-T2 3300*1700mm Glass Fusing & Bending  Furnace for frame glass
TECHNICAL SPECIFICATION
-  Type                   FGT-HF-BN-T2
-  Max. glass size   3300*1700
-  Glass thickness       2-25mm
-  Amount of heating section     2 pieces
-  Internal dimensions heating section  4000 x 3000mm
-  Depth of heating section              485mm
-  Install power                  85 kw
-  Capacity                        ≥6 units/8h

• Electrical  supply            220/380VAC, 50Hz
• Products quality :               ECE R43

FGT-HF-BN-T2 3300*1700mm Glass Fusing & Bending  Furnace for frame glass
FEATURES

1. The high tech bending furnaces manufactured high-grade optical quality glass.
2. It is to bend a full thickness range of all float glass types and colors. The bent quality meets the requirements for laminating and double glazing.
3. Short series production
4. The heating system is efficient and economical
5. Metal parts ,especially heating section frames and sealing by insulation material boards so that the radiation will not go out from the chamber.Spiral heaters on ceramic tubes.
6. The heating element which can lift and down by manual control

FGT-HF-BN-T2 3300*1700mm Glass Fusing & Bending  Furnace for frame glass
Control system

The furnace is automatic control by PLC control system, includes the followings:

1. Process parameters storage and recall, such as glass thickness, size, color, glass type and maybe different sources of float glass and etc. Whenever you produce a new order for different thickness, size, color, type, source and etc., you just enter the process parameters, and the system will memorize these process data. Next time, when you have the re-order, or the same order, you can re-call the data, and the machine will automatically use the stored processing data to produce.
2. Controller for the temperature control
3. Thermocouple is measuring the temperature of indoor air in the furnace, The operating value of the overheating cover cannot be set over 1000oC.

All equipment in this tender, wherever necessary and feasible, will be packed within solid wooden cases and suitably protected with packing materials to minimize any risk of damage during transportation.

OPTION SPACER
With an extra spacer of 300mm you can increase the inside  height with 300mm.The extra spacer makes it possible to bend the glass with a larger radius
OPTION COVER
A cover makes it possible to remove the car from under the kilntop  sooner to speed up production.


SPARES
      Full compliment of necessary spares for 1 year running period.
       INSTALLTION, COMMISSIONING AND TRAINING
For the complete installation, commissioning and one week training customer's personnel the manufacturer will send one specialists for one working week's time.
The cost of this work is USD50- per working day per person.
Air tariff, transportation from and to the airport, air-tickets, visa cost, boarding, meals, daily transport and insurance to be provided by the customer.


EXCLUSIONS

Other items will be required to put plant into operation and these are listed below and are excluded from our offer::

1. Foundation (this offer assumes a flat solid concrete factory floor of load bearing capacity to accommodate plant weight).
2. Main incoming cabling and connections.
3. Glass and labor for commissioning.
4. Any electrical filtration or power factor correction systems that may be needed.

SERVICES
Electricity:  Voltage and frequency to suit   220/380V, 50Hz, 5 wire system
           Installed power:  60kW
Compressed air :  90 l/h at 6 bar
