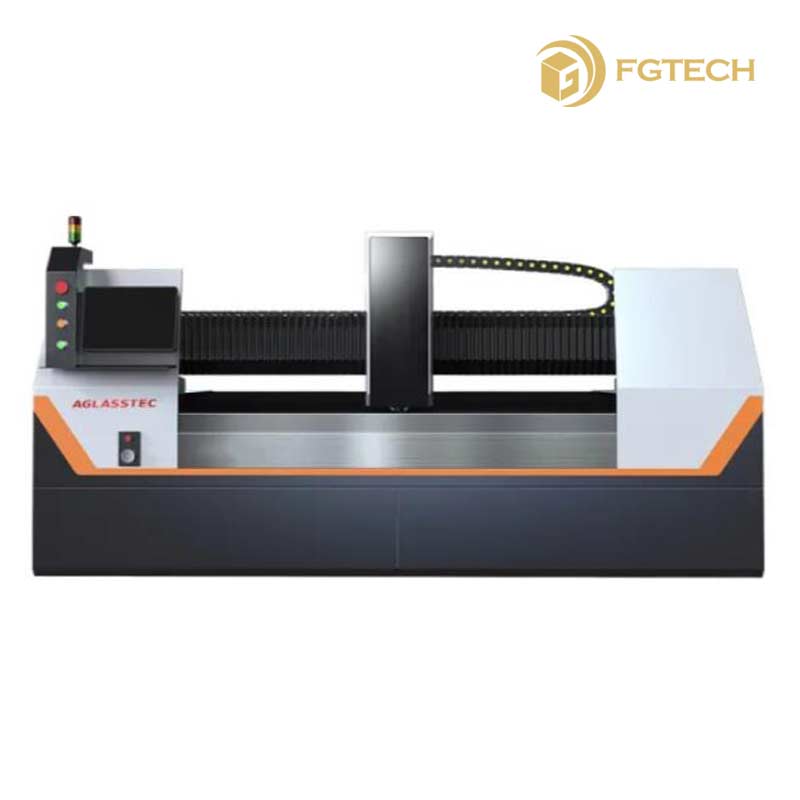

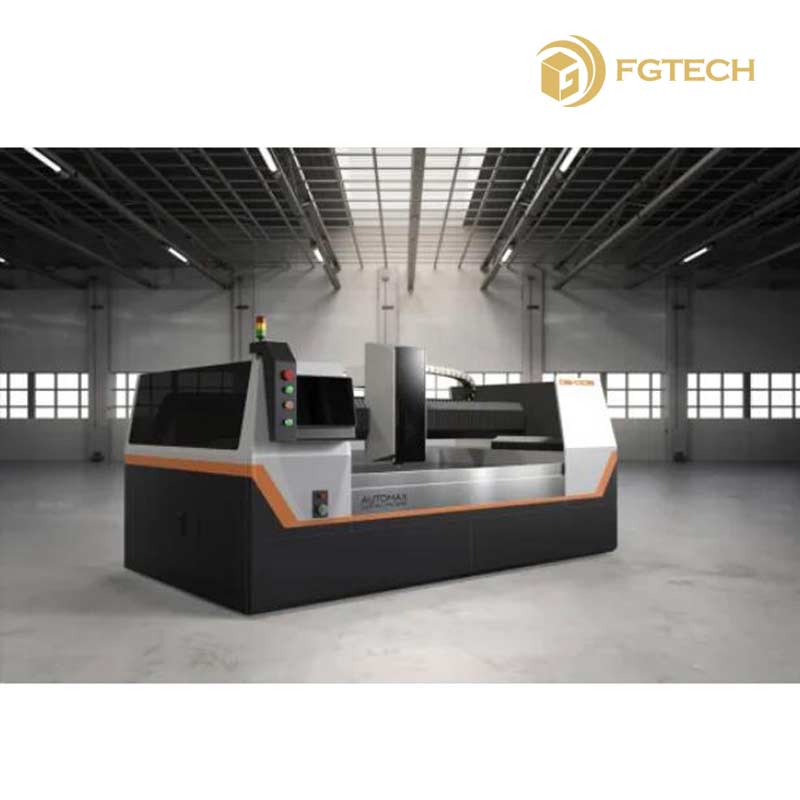

Very Good China Factory Price Routing Drilling Countersink Grinding Glass CNC Machine Fgd-Hw2510b
Product ID : FGD-HW2510B
Product Attributes :
Linear guide rail and ball screw adopt Taiwan TBI or HWIN products, which has automatic electric oil pump for lubrication, and the screw has double nuts.
Product Description
Technical Parameters
| CNC GLASS CENTER SPECIFICATION |
| Work Table Size:2200X1200 |
| Grinding speed Range:1-15m/min. Max. Rough Grinding Speed: 15m/min; Max. Fine Grinding Speed: 15m/min; Max. Polishing Speed: 8m/min |
| The CNC can realize automatic tool switching in multiple working procedures including grinding round edge and straight edge. |
| The vacuum cup is made of high-quality rubber. Equipped 10 pcs vacuum cup with machine. |
| Positioning pile using pneumatic positioning is accurate and reliable. One machine equipped with 8 sets of positioning piles. |
| DB polishing wheel can automatically compensate electric pressure, wheels compensation automatically. |
| CNC control system, four axis control, remote collaboration function |
| Delta servo motor and servo drive. |
| Delta high-speed spindle frequency conversion drive & frequency converter. |
| Linear guide rail and ball screw adopt Taiwan TBI or HWIN products, which has automatic electric oil pump for lubrication, and the screw has double nuts. |
| High speed variable frequency spindle which is water cooling, and max. speed :9000RPM if for home-appliance glass. Tool swift is pneumatic control. |
| Water ring vacuum pump 2.2kw maximum negative pressure - 0.093mpa |
| The flexible part of the cables use the special towing cable for cnc machine |
| Machine table use the thickened industrial aluminum plate. |
| Machine protection cover and water tank use stainless steel |
| Installation parts: one set of tools, one set of manual book. |
| Onsite installation and training, 3 days. Maintenance training, one day. Operation training, two days. |
| Total power is 15KW. Dimension of equipment: 3450X2300X1800mm total weight 4500KG. |
| CNC GLASS CENTER CONFIGURATION | |||
| Travel Distance | X-axis | 1800mm | |
| Y-axis | 1100mm | ||
| Z-axis | 100mm | ||
| Distance from Spindle to Working Table | 100mm | ||
| Glass Thickness | 4-10mm | ||
| Accuracy | Positioning accuracy | ±0.05 | |
| Repeat accuracy | ±0.03 | ||
| Machine Weight and Power | Weight | 4.5 tons | |
| Installation Power | 15kw | ||
| Machine Size | 3450*2300*1800 | ||
| Air Source | 0.6mpa, 0.3sqm/hour | ||
| Water Supply | 60L/min | ||
Working Table |
Working Table Size | 2700X1200mm | |
| The Max. Weight Load | 100KG | ||
| Material | Industrial Aluminum Panel or PVA | ||
| Machine Frame | Machine frame is welded by 210*150mm steel square tube, and designed with obliquity for water flow. |
| Machine Frame | Machine frame is welded by 210*150mm steel square tube, and designed with obliquity for water flow. |
| Machine beam is welded by 300*200*10mm steel square tube | |
| Machine frame and beam did anneal treatment, and VSR treatment | |
| Waterproof and Protective Panel | Working Table is surrounded by stainless steel protective panel |
| Beam top and bottom also have stainless steel protective panel | |
| There are SS oil groove of guiderail of Y axis to avoid rusting after long time working which will affect the accuracy | |
| There are alarm panel in orange color beside at two side of the machine | |
| The machine equipped with stainless steel water tank. | |
| There are water proof panel on X axis and Y axis | |
| Electric and Pneumatic Control System | CNC control system, four axis control, remote collaboration function |
| Servo motor and servo drive use product from Delta | |
| High speed spindle is frequency drive and use Delta Inverter | |
| Industrial computer uses I5 processor | |
| Displayer is 18.5-inch LCD | |
| Intermediate relay is from products from Schneider | |
| Power supply switch is also from Schneider | |
| Sensors are from Omch or Omron | |
| 4 axis hand wheels | |
| Signal lamp installed to show machine running status | |
| The system has voltage compensation function or linear compensation function | |
| Drawing software with processing program generation function | |
| The system has function of adjusting polishing wheel | |
| The system has function of adjusting leveling of working table | |
| Spindle | Spindle motor rotating speed is 2000-9000Rpm |
| Spindle Motor: 7.5kw | |
| Spindle Sealing Mode: pneumatic sealing |
| Spindle Cooling Mode: recycle water cooling | ||
| Spindle handle use BT40 and with locking base | ||
| Spindle has zero frequency detection function | ||
| Other Main Parts | Linear guiderail is from HIWIN, size 35 and 30 | |
| Screw is from TBI 4010 with double screws | ||
| Vacuum pump use 4kw water ring vacuum pump | ||
| Pressure pump is 1.8kw | ||
| Cooling pump is cooling pump special for high speed spindle | ||
| Oil pump is 1.8L automatic oil pump | ||
| The drag chain cable adopts bending resistant high flexible cable | ||
| Parts Send with the Machine | Sucker | 8Pcs |
| Positioning Pilers | 8Pcs | |
| Proximity Sensor | 4Pcs | |
| Solenoid Valve | 2Pcs | |
| Air pipe 8mm | 15Meters | |
| Intermediate Relay | 2Pcs | |
| BT40 Tool Handle | 2Pcs | |
| BT40 Tool setting bar | 1Pcs | |
| Grinding Wheel | 1Set | |
| Seal Ring | 10Pcs | |
| Tool Box | 1Pcs | |
| Operation Manual | 1Pcs | |
