Glass Roller Seaming Machine
The machine use rubber rob wheel to press glass, transmission of fixed glass, processing and milling to avoid glass scratches and can effectively deal with Low-E glass in addition to film, edging processing problems.

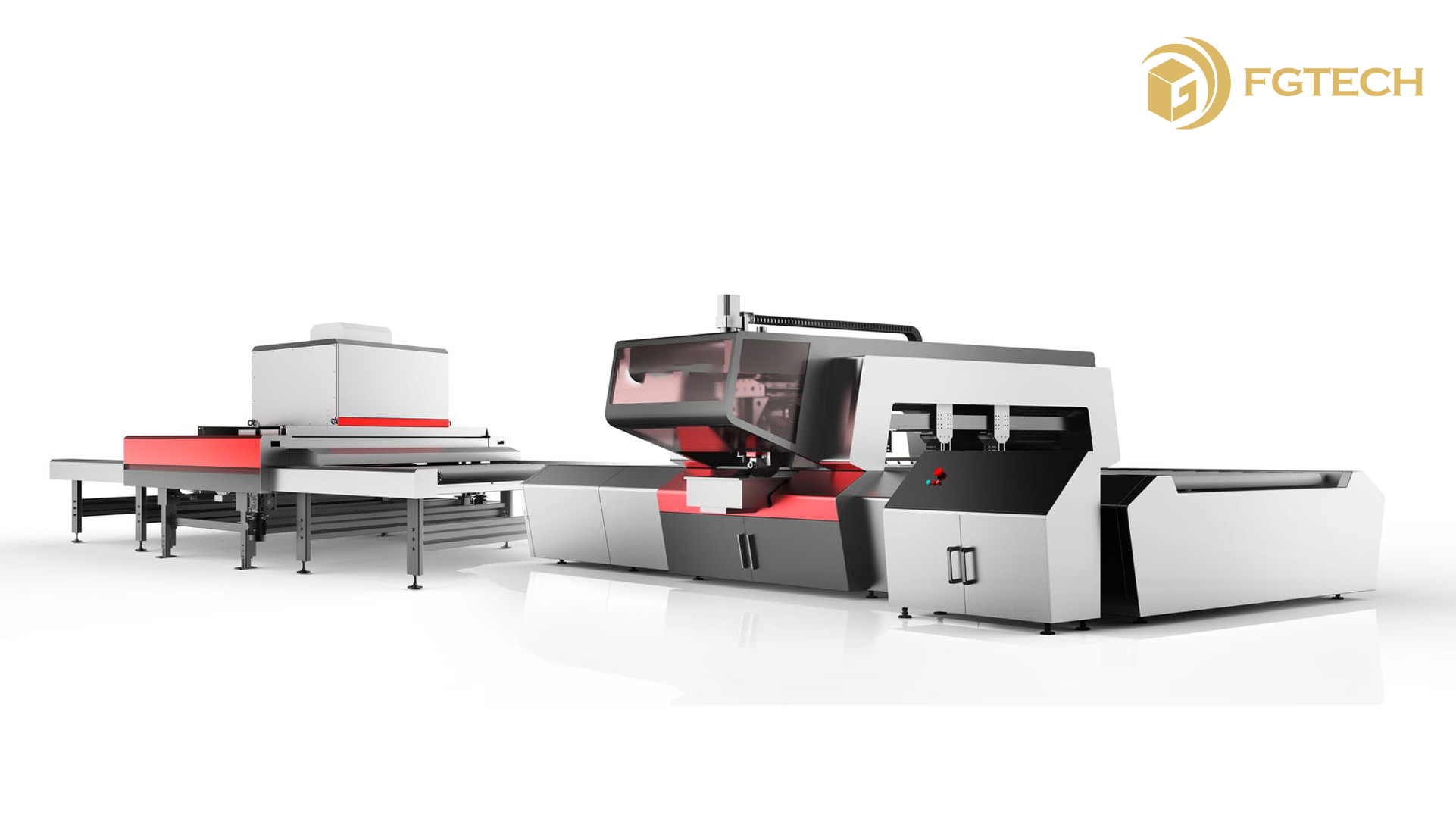

Automatic Glass Roller Seaming machine
-Suitable for high-speed processing for hollow glass architectural glass, doors and windows glass, white glass and low-E glass.
-The machine use rubber rob wheel to press glass, transmission of fixed glass, processing and milling to avoid glass scratches and can effectively deal with Low-E glass in addition to film, edging processing problems.
I.Parameter
|
Main Technical Parameter Model |
FGE-FH1600 |
FGE-FH2000 |
FGE-FG2500 |
|
Max size |
1600*3600mm |
2000*3600mm |
2500*3600mm |
|
Mini size |
300*700mm |
300*700mm |
300*700mm |
|
Thickness |
4-10mm |
4-10mm |
4-10mm |
|
Arris width size/Range chamfer width |
0.5-2mm |
0.5-2mm |
0.5-2mm |
|
Speed |
25-35m/min |
25-35m/min |
25-35m/min |
|
Worktable height |
850*900mm |
850*900mm |
850*900mm |
|
Motor number/spindles |
Three group of wheels ,total 12 pcs |
||
|
Floor space(L*W*H) |
8300*3500*1850mm |
8300*4000*1850mm |
8300*4500*1850mm |
|
Volt./freq. |
3phase *380V/50HZ( as per request) |
||
|
Power(KW) |
18KW |
18KW |
18kw |
|
Air Pressure(MPa) |
0.5MPa |
0.5MPa |
0.5MPa |
|
weight(Kg) |
4.6T |
5.1T |
5.5T |
II.Configuration
1.1 The machine is using two beam ,three spindles ,each spindle uses 4 resin wheels, a total of 12 wheels, which guarantees the quality of grinding.
1.2 The glass conveying method adopts the roller structure of the rubber roller, the whole parts is stability, glass processing speed is improved, which ensure glass stable during processing.
1.3Roller driven by gear. Convey very smoothly and stably.
