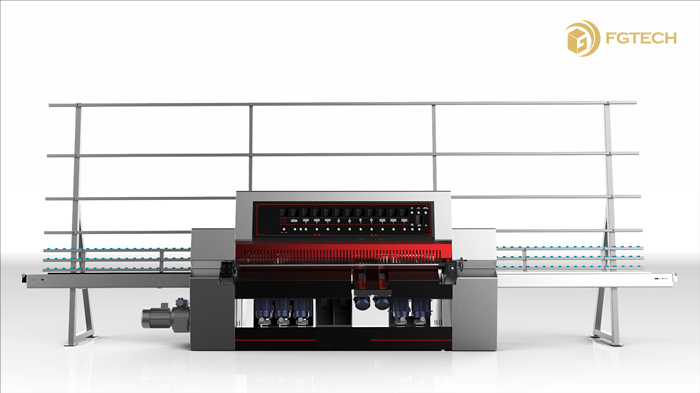

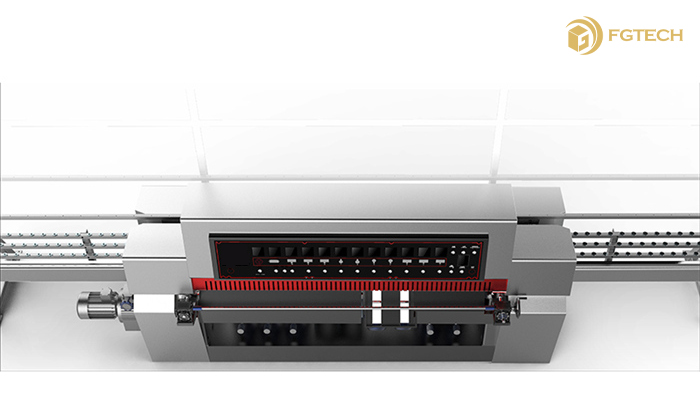

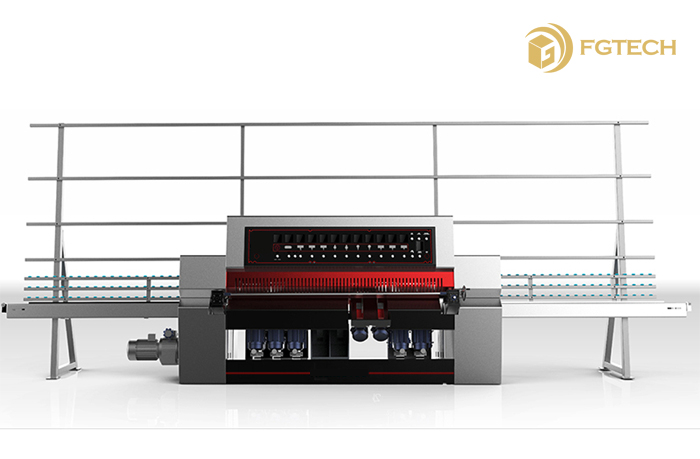

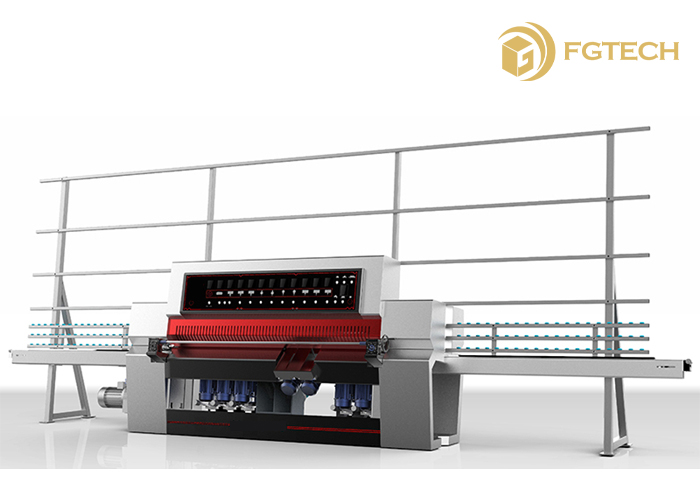

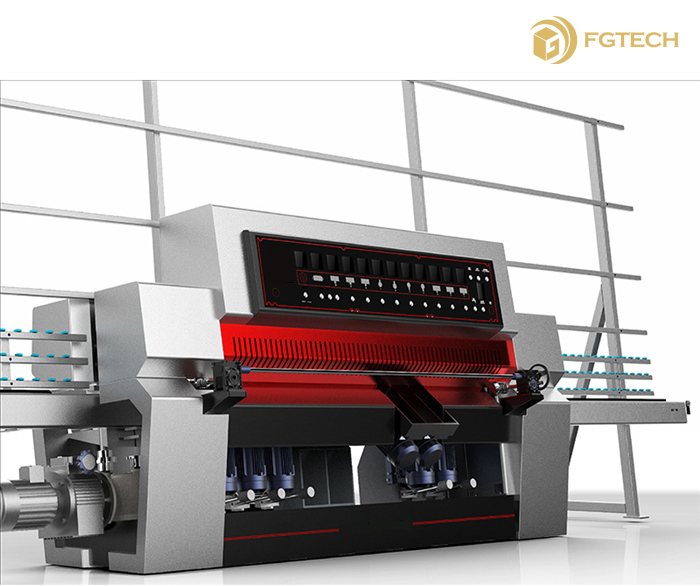

New Design 9 Motors and 4 Layer Waterproof Brush Digital Display Glass Thickness Straight Line Edging Machine
The machine is designed for grinding/polishing bottom edge and arris of flat glass.
Basic Info.
The machine is designed for grinding/polishing bottom edge and arris of flat glass. Conveyor adopts chain transmitting system consisting of special stretchy rubber pads. Timing belt transfersglass. The machine has the characteristic of smooth and steady , easy to operation and maintenance,Front beam can be adjusted automatically for glass of different thickness.
Technical parameterschnical parameters
Wheels: 9Heads
working speed: 0.6-6.0m/min
Max. arris width: 2.5mm
Min. glass size: 60mm*100 mm, Max. glass size:2M*3M
Glass thickness: 3-20mm
Total power: 18.75kw
Total dimension: 6500mm×1000mm×2600mm
Total weight: 2800kg
Product advantage:
1. Adopt XinGuang or other famous brand Variator speed control motor as transmit system,high or low speed all smooth and no vibration, low noise.
2. Digital display glass thickness.
3. Adopt manual filling function oil system , easy to maintain the skateboards which for support grinding motors.
4. The last motor for polishing flat bottom glass, adopt double speed system motor.
5. 4 layer waterproof brush, easy to replace.
6. New design for the front beam, it is easy to replace the old screw axle that adjust glass thickness.
Grinding wheel introduction :
| Wheel position |
Type of wheel | internal diameter (mm) |
external diameter (mm) |
Grain (mesh) |
Power (kw) |
| No.1 | Diamond wheel | 50 | 150 | 100 | 2,2 |
| No. 2 | Diamond wheel | 50 | 150 | 230 | 2.2 |
| No.3 | Resin wheel | 50 | 130 | 180 | 1.5 |
| No.4 | 10S40 wheel | 60 | 130 | --- | 1.5 |
| No.5 | Resin wheel | 50 | 130 | 180 | 1.5 |
| No.6 | 10S40 wheel | 60 | 130 | --- | 1.5 |
| No. 7 | Resin wheel | 50 | 150 | 320 | 2.2 |
| No.8 | 10S40 wheel | 70 | 150 | --- | 2.2 |
| No.9 | Felt wheel | 70 | 150 | --- | 1.5 |
