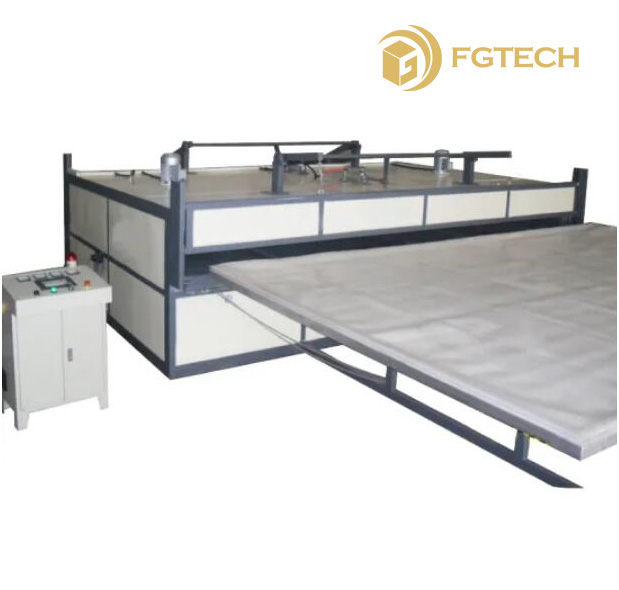

Fgl-Em-HD-3 2000*3000mm Three-Level Laminated Glass Machine for Architectural Glass External Facade

FGL-EM-HD-3 2000*3000mm Three-Level Laminated Glass Machine for Architectural Glass External Facade
Use modified EVA film (also called EN film) or similar film. After film is closed under ambient condition, then put it into silica rubber bag enclosed by silica rubber strip, then enter into this machine and process is in accordance with the specified procedure. Besides this machine can produce ordinary laminated glass, also other laminated glass made from PC sheet, PET flake, decorative paper or cloth, color film or metallic wire net as well as carry out encapsulation of solar battery.
High grade silica bag

Vacuum Glass Laminated Furnace


Suitable film and technology

FGL-EM-HD-3 2000*3000mm Three-Level Laminated Glass Machine for Architectural Glass External Facade Configuration accompanied the machine

Air agitator, vacuum pump (including cooling water pump that is started in the same step, water tank), PLC control system, electric heating system,  furnace body.

FGL-EM-HD-3 2000*3000mm Three-Level Laminated Glass Machine for Architectural Glass External Facade
(1)max. Glass processing size:2000*3000mm
(2) Controller box:800*500*1000mm
(3) Total installed power:50KW
(4) Voltage:380V/50HZ,3 Phase
(5) Operating by Smart Programmable Instrumentation,with automatic heating systom .
(6) 6 sets thermal circulation blower,drive by airpowered,1 set Taiwan vacuum pump,1sets air purifier,5 pieces high grade silicon vaccum bags.(use for vacuumize)
