Fgl-Em-Jc-5000-3000 Five-Level Laminated Glass Machine for Architectural Glass

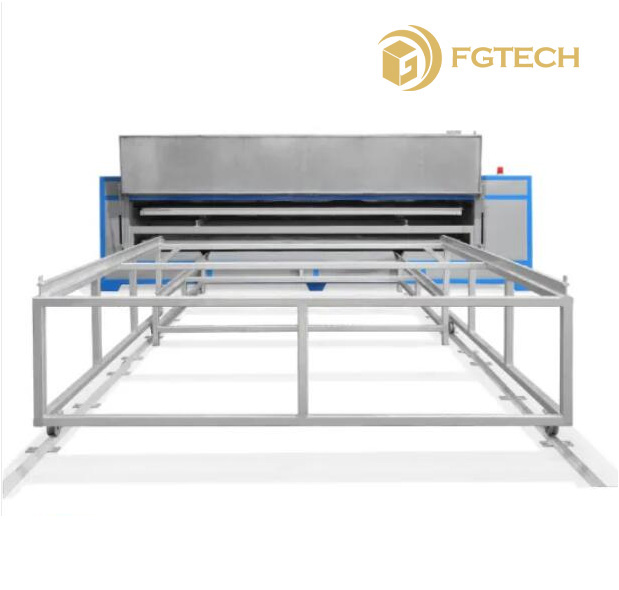

FGL-EM-JC-5000-3000, EVA film glass laminating furnace (5 layers with lifting single station)
The equipment can be processed and produced: tempered laminated glass, arc laminated glass, outdoor safety laminated glass and other building glass. Dimming glass, heat transfer glass, acrylic lamination, color lamination, laminated glass, wire, cloth, explosion proof, dimming, photo, door, photo and other art glass. Solar photovoltaic panels, conductive glass, thermal glass, LED photovoltaic glass and other new energy glass.




FGL-EM-JC-5000-3000, EVA film glass laminating furnace control features:
1: Siemens PLC intelligent temperature control, touch screen interface operation, the system automatically complete the pre-set process parameters, to ensure the product qualification rate (optional remote control monitoring function, to achieve a multi-machine survival mode).
2: the furnace is equipped with 8 sets of hot air forced convection circulation system. The furnace is divided into three independent temperature monitoring areas, and the temperature of the three areas is automatically adjusted to ensure the temperature in the furnace is even.
3. Equipped with manual pressure reduction, it can effectively control the common glue flow in the production process and save the time for workers to remove the product surface stains.
4: equipped with automatic power off protection system for temperature overload equipment, equipment fault alarm reminder, data recording.
5: 2 brand vacuum pumps L40 are configured to ensure the uninterrupted pumping during the operation of the equipment.
6: maximum yield :200m2/ furnace (building glass: 5+5 6+6).
7: Doors for both front and backside. Hydraulic lift.
8. Floor area :12000mm×3300mm
9: the height in the furnace is 1200mm.
10: total power :60kW.
11: voltage: 380V/50Hz for 3 phase and 4 wires

Case:
